Aluminum rod graphite rings are graphite components used in hot top casting systems to guide and control molten aluminum during the casting of aluminum rods. AdTech manufactures aluminum rod graphite rings from high-purity graphite for use with hot top casting equipment, including Wagstaff air-slip casting systems. The rings are machined to precise dimensions to provide a stable casting interface, smooth surface, and reliable service during repeated casting operations.

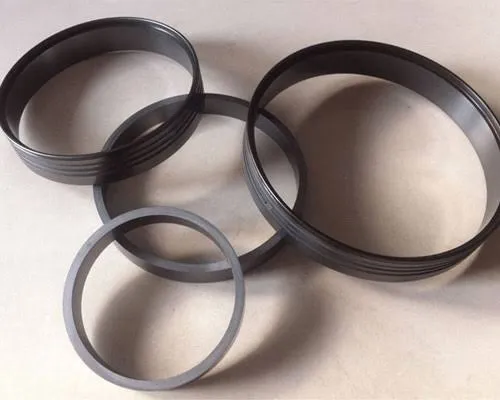

What Is an Aluminum Rod Graphite Ring?

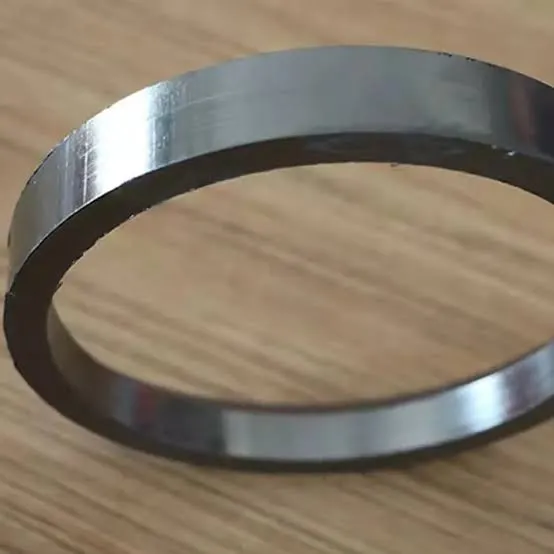

An aluminum rod graphite ring is a machined graphite component installed in the hot top casting system of an aluminum rod casting line.
During casting, molten aluminum flows from the distribution system into the mold/crystallizer, where it begins to solidify into the required rod shape. The graphite ring forms part of the casting interface and remains in contact with the molten aluminum during operation.
The performance of this component can affect:
- Molten aluminum flow at the casting interface
- Surface quality of the cast aluminum rod
- Stabilité dimensionnelle
- Metal-to-graphite interaction
- Maintenance frequency
- Component service life
For this reason, graphite quality, machining accuracy, surface finish, and dimensional compatibility with the casting system all need to be considered when selecting a replacement ring.
Aluminum Rod Graphite Rings for Wagstaff Air-Slip Casting
AdTech aluminum rod graphite rings are designed for use in hot top casting equipment and can be supplied for casting systems using Wagstaff air-slip technology.
In an air-slip casting system, molten aluminum is introduced into the mold while air is used to create a controlled interface between the casting surface and the mold components. The graphite components in this area need to maintain their geometry and surface condition throughout repeated casting operations.
For replacement or new equipment applications, the graphite ring should be matched to the actual casting system rather than selected only by its outside diameter or nominal size.
Useful information for selection includes:
| Information | Why it matters |
|---|---|
| Casting system | Determines equipment compatibility |
| Rod diameter | Affects ring geometry |
| Graphite ring dimensions | Required for dimensional matching |
| Alliage d'aluminium | Influences casting conditions |
| Température de coulée | Relevant to thermal performance |
| Vitesse de coulée | Affects operating conditions |
| Existing ring drawing | Helps confirm dimensions |
| Equipment photos | Useful when drawings are unavailable |
Why Is High-Purity Graphite Used for Aluminum Rod Casting?
Graphite is widely used in high-temperature casting applications because of its combination of thermal, mechanical, and chemical properties.
For aluminum rod casting, the material needs to withstand repeated exposure to molten aluminum while maintaining the required shape and surface condition.
High-purity graphite can provide:
High-Temperature Stability
Graphite maintains its structural properties at the high temperatures encountered in aluminum casting when used under suitable operating conditions.
Low Wettability With Molten Aluminum
The interaction between graphite and molten aluminum is important at the casting interface. Low wettability can help reduce metal adhesion and buildup on the graphite surface.
Good Machinability
Graphite can be machined into precise geometries, making it suitable for components where dimensional accuracy is important.
Résistance aux chocs thermiques
Casting equipment experiences repeated heating and cooling. Suitable graphite grades can withstand thermal cycling without excessive damage under appropriate operating conditions.
Low Friction and Self-Lubricating Characteristics
Graphite has naturally low-friction characteristics, which can be beneficial in applications involving relative movement or contact between graphite and other components.
Key Features of AdTech Aluminum Rod Graphite Rings
AdTech aluminum rod graphite rings are manufactured from high-purity graphite and precision-machined according to the required geometry.
| Fonctionnalité | Practical benefit |
|---|---|
| High-purity graphite | Suitable for high-temperature aluminum casting |
| Precision machining | Helps maintain dimensional consistency |
| Smooth working surface | Supports stable casting conditions |
| Low wettability | Helps reduce aluminum adhesion |
| Résistance aux chocs thermiques | Suitable for repeated casting cycles |
| Résistance à la corrosion | Withstands contact with molten aluminum under suitable conditions |
| Custom dimensions | Allows matching to different casting equipment |
The actual graphite grade and dimensions should be selected according to the casting equipment and operating conditions.
How Does the Graphite Ring Affect Aluminum Rod Casting?
The graphite ring is a relatively small component, but it operates directly in the casting zone.
A ring with unsuitable dimensions or an inconsistent working surface can create problems such as:
- Uneven contact conditions
- Aluminum buildup
- Abnormal wear
- Casting surface defects
- More frequent component replacement
- Additional maintenance work
Dimensional accuracy is therefore particularly important when replacing an existing graphite ring.
A replacement ring should match the original equipment interface and casting geometry as closely as required by the equipment manufacturer or casting process.
Service Life of Aluminum Rod Graphite Rings
AdTech’s aluminum rod graphite rings have a typical service life of approximately 800–1,200 casting cycles under suitable operating conditions.
Actual service life can vary depending on:
- Alliage d'aluminium
- Température de coulée
- Vitesse de coulée
- Thermal cycling
- Graphite grade
- Ring dimensions
- Installation accuracy
- Operating practices
- Cleaning and maintenance
The service-life figure should therefore be used as a reference rather than a guaranteed number for every casting line.
Aluminum Rod Graphite Ring vs. Ordinary Graphite Ring
Not every graphite ring is suitable for aluminum rod casting.
An industrial graphite ring may be used for sealing, mechanical applications, thermal equipment, or other purposes, while an aluminum rod graphite ring is manufactured for a specific casting interface.
| Article | Aluminum rod graphite ring | General graphite ring |
|---|---|---|
| Main application | Aluminum rod hot top casting | Various industrial applications |
| Working environment | Molten aluminum casting zone | Depends on application |
| Geometry | Casting-system specific | General-purpose or application specific |
| Dimensional requirements | Usually high | Depends on use |
| Surface requirements | Important for casting performance | Depends on use |
| Equipment compatibility | Must match casting equipment | Not necessarily suitable |
For this reason, purchasing a graphite ring based only on the material name is not enough. The graphite grade, dimensions, geometry, and application all need to match.
How to Order Aluminum Rod Graphite Rings
When requesting a quotation for aluminum rod graphite rings, the fastest way to confirm suitability is to provide the existing ring information.
You can send:
- Drawing with dimensions, if available
- Existing graphite ring specifications
- Casting machine or hot top system model
- Rod diameter
- Alliage d'aluminium
- Casting conditions
- Required quantity
- Photos of the existing component or installation
If the original drawing is unavailable, photos and basic dimensions can still help determine whether the required component can be manufactured.
For repeat purchases, providing the previous part number or drawing is preferable because it reduces the risk of dimensional mismatch.
Aluminum Rod Graphite Ring Manufacturer
AdTech Metallurgical Materials Co., Ltd. has been manufacturing hot top casting components since 2012.
Our hot top casting product range includes:
- Aluminum rod graphite rings
- High-purity graphite rings
- Sleeves
- Adapter plates
- Shunt plates
- Hot top caps
- Shunt grooves
- Other components used in molten aluminum casting equipment
For aluminum rod graphite rings, production focuses on graphite material selection, dimensional accuracy, surface machining, and compatibility with the customer’s casting system.
If you are replacing an existing graphite ring, providing the drawing, dimensions, equipment model, or a photo of the original part allows the required specification to be evaluated before quotation.
FAQ
1. What is an aluminum rod graphite ring?
It is a machined graphite component used in hot top casting systems for aluminum rod production.
2. Can aluminum rod graphite rings be used with Wagstaff air-slip casting systems?
Yes. AdTech supplies aluminum rod graphite rings for hot top casting applications, including systems using Wagstaff air-slip casting technology. The dimensions should be confirmed against the specific equipment.
3. What graphite is used for aluminum rod graphite rings?
AdTech uses high-purity graphite for these casting components. The appropriate graphite grade depends on the application and operating conditions.
4. Can the graphite ring be customized?
Yes. Dimensions and geometry can be manufactured according to the required casting equipment and customer drawings.
5. How long does an aluminum rod graphite ring last?
AdTech’s typical reference service life is approximately 800–1,200 casting cycles under suitable operating conditions. Actual life depends on the casting process and operating conditions.
6. How do I choose the correct graphite ring size?
The ring should be selected according to the casting machine, rod diameter, installation dimensions, and existing component drawing or specifications.
7. Can I order replacement graphite rings?
Yes. For replacement orders, providing the original drawing, dimensions, part number, or photos can help confirm compatibility before production.
8. Does the graphite ring affect aluminum surface quality?
The graphite ring forms part of the casting interface, so its surface condition and dimensional accuracy can influence casting stability and the interaction between the graphite and molten aluminum.
9. What information is needed for a quotation?
The most useful information is the drawing or dimensions, casting system, rod diameter, required quantity, and any available photos of the existing ring.
10. Does AdTech supply other hot top casting components?
Yes. AdTech also manufactures sleeves, adapter plates, shunt plates, hot top caps, shunt grooves, and other components for molten aluminum casting equipment.
