Alumina Ceramic Foam Filter Plate

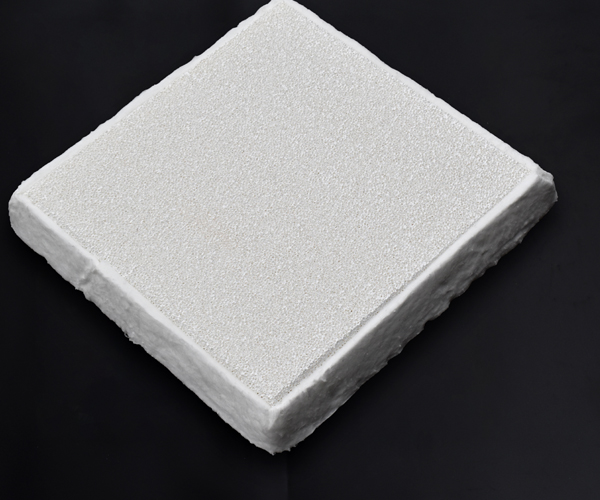

Alumina Ceramic Foam Filter Plates

Alumina ceramic foam filter plates are the most widely used filter in the field of aluminum melt filtration. The alumina foam ceramic filter plate can remove the inclusions on the molten aluminum surface, thereby improving the quality of castings. Nowadays, more and more aluminum manufacturers are using these filters.

Inclusions refer to any solid or liquid exogenous impurities that exist above the liquidus temperature.

The harmful effects of inclusions on the properties of aluminum alloy are:
Reduce the mechanical properties of the alloy, especially the fatigue performance, impact toughness and elongation;
Reduce the fluidity and cutting performance of the melt;
Promote the casting to crack during processing, and make the casting foam during heat treatment.

Therefore, it is of great significance to analyze the ingredients and sources of inclusions and take effective control measures.

The inclusions in the melt should be removed by refining, filtering and other methods.

1. Use gas or refining agent for deslagging and degassing.

The slag removal and degassing of the aluminum alloy flame are complementary to each other. The less slag inclusions, the less gas content in the melt. Use inert gas or refining agent to float gas and inclusions to achieve the purpose of removal. The gases used in general refining include: chlorine, nitrogen, argon, and mixed gases.

The mechanism of using gas refining is: the used gas can react with hydrogen or aluminum to form bubbles, and the hydrogen dissolved in the aluminum liquid diffuses into the bubbles according to the law of partial pressure, and discharges the melt as the bubbles rise. At the same time, during the floating process of the bubble, the non-metallic inclusions in contact are adsorbed to the surface of the bubble according to the principle of flotation. As the bubbles float to the surface of the melt, so as to achieve the purpose of removing gas and inclusions.

Degassing Technology

2. Use filtration to remove inclusions from aluminum and aluminum alloy melts.

Filtration is a method widely used in alloy products that require high metal purity under industrial production conditions. The filtration process can not only remove the inclusions, but also remove the hydrogen in the form of complexes. The filter materials used in the industry generally have the following types: filter screens, ceramic tube filters, foam ceramic filter plates, etc.

The alumina foam ceramic filter plate can be separated by filtering the solid inclusions in the liquid aluminum. Its advantages are high porosity, high filtration efficiency, convenient replacement, low cost and strong adaptability.

Adtech provides ceramic foam filter products for the global industrial market. Provide these high-quality filter pore sizes (PPI): 20/30/40/50/60.

Alumina Ceramic Foam Filter Plates size

660x660x50mm (26 inches)
584x584x50mm (23 inches)
508x508x50mm (20 inches)
432x432x50mm (17 inches)
381x381x50mm (15 inches)
305x305x50mm (12 inches)
228x228x50mm (9 inches)
178x178x50mm (7 inches)
