In aluminum casting and melt purification processes, maintaining a controlled thermal environment is essential for achieving consistent metal quality and process efficiency. While much attention is often given to filtration systems such as ceramic foam filters, sealing and insulation materials also play a critical role in ensuring stable operating conditions.
Among various high-temperature sealing materials, ceramic fiber rope is widely used in aluminum casting due to its combination of thermal resistance, flexibility, and durability. It is particularly effective in sealing applications where maintaining temperature stability and preventing heat loss are essential.
What Is Ceramic Fiber Rope?

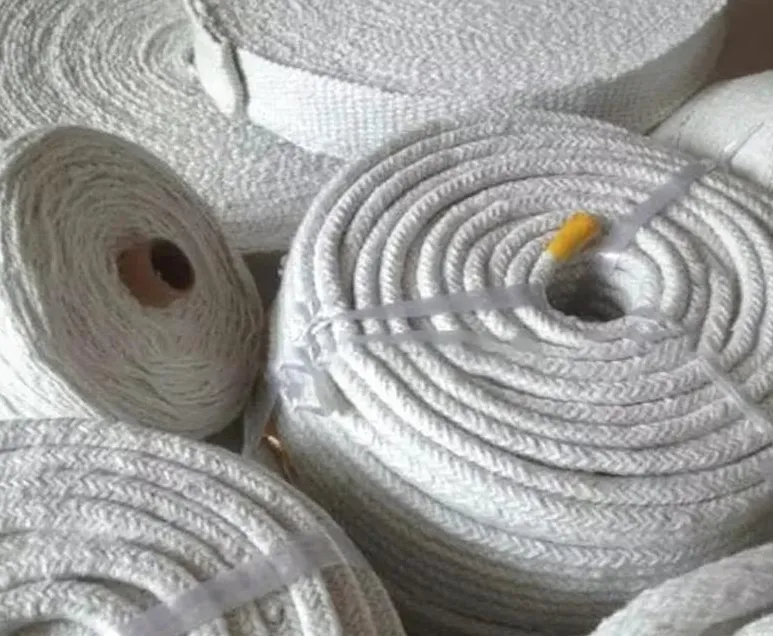

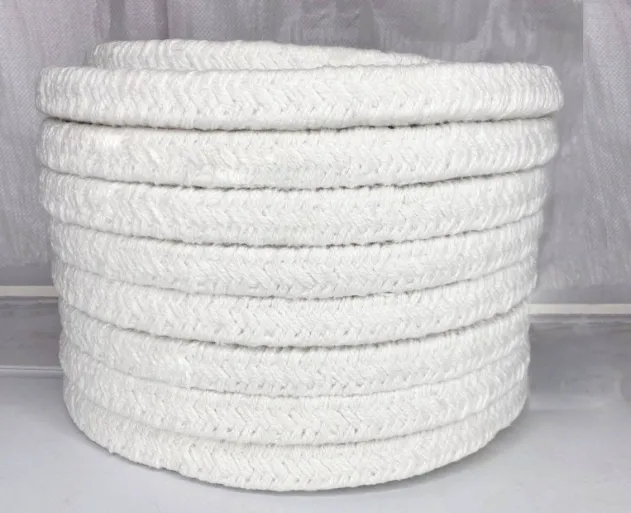

Ceramic fiber rope is a high-temperature insulation and sealing material made from alumina-silica ceramic fibers. These fibers are processed into yarn and then braided or twisted into rope form, often reinforced with glass fiber or stainless steel wire to improve strength.
This structure allows the material to maintain flexibility while providing resistance to high temperatures, making it suitable for sealing applications in industrial environments.
Compared with rigid refractory materials, ceramic fiber rope can adapt to irregular surfaces, ensuring a more effective seal in dynamic and high-temperature conditions.
Why Is Ceramic Fiber Rope Important in Aluminum Casting?
Aluminum casting involves multiple stages, including melting, transfer, filtration, and solidification. During these processes, molten aluminum is typically maintained at temperatures between 700°C and 1000°C.
In such environments, effective sealing is essential for:
- Maintaining stable molten metal temperature
- Reducing oxidation caused by air exposure
- Improving filtration efficiency
- Preventing heat loss and reducing energy consumption
Without proper sealing, even small temperature fluctuations can affect metal flow behavior and lead to defects in the final casting.
What Are the Key Properties of Ceramic Fiber Rope?
Ceramic fiber rope offers a combination of thermal and mechanical properties that make it suitable for aluminum casting environments.
Key properties include:
- High temperature resistance (suitable for molten aluminum systems)
- Low thermal conductivity for heat retention
- Good flexibility and compressibility
- Resistance to thermal shock and cyclic heating
- Chemical stability in oxidizing environments
These properties allow it to function effectively as both a sealing and insulation material.
What Are the Typical Technical Parameters of Ceramic Fiber Rope?
| Property | Typical Value | Significance in Aluminum Casting |
|---|---|---|
| Classification Temperature | 1000–1260°C | Suitable for high-temperature zones |
| Density | 500–650 kg/m³ | Provides balance between flexibility and strength |
| Thermal Conductivity (800°C) | 0.20–0.30 W/m·K | Helps reduce heat loss |
| Linear Shrinkage (24h @ 1000°C) | ≤ 3% | Ensures dimensional stability |
| Tensile Strength | ≥ 0.5 MPa | Supports durability during operation |
Based on industry-standard ceramic fiber material specifications and technical datasheets commonly used in high-temperature insulation and foundry applications.
Where Is Ceramic Fiber Rope Used in Aluminum Casting Processes?
In aluminum casting operations, ceramic fiber rope is primarily used in sealing applications across different stages of the process.
Common applications include:
Furnace Door Sealing
Helps maintain furnace temperature and reduces heat leakage.
Launder System Sealing
Used in molten aluminum transfer channels to minimize temperature drop and oxidation.
Filter Box Sealing
Ensures proper sealing around filtration units, supporting stable metal flow and improving filtration efficiency.
Expansion Joint Sealing
Accommodates thermal expansion in high-temperature equipment, preventing structural stress.
These applications demonstrate its versatility in maintaining thermal stability across the casting process.
How Does Ceramic Fiber Rope Compare with Other Sealing Materials?
| Material | Max Temp (°C) | Flexibility | Sealing Performance | Typical Use |
|---|---|---|---|---|
| Ceramic Fiber Rope | 1000–1260 | High | Excellent | Furnace, launder, filter box |
| Graphite Packing | ~800 | Medium | Good | Static sealing areas |
| Glass Fiber Rope | ~600 | High | Moderate | Lower-temperature zones |
| Refractory Cement | >1200 | Low | Limited | Structural sealing |
Comparative analysis based on industrial sealing material performance data and application practices in aluminum casting and purification systems.
How to Select the Right Ceramic Fiber Rope for Aluminum Casting?
Selecting the appropriate ceramic fiber rope requires consideration of several factors:
- Operating temperature range
- Required sealing tightness
- Mechanical strength and reinforcement type
- Installation conditions (static or dynamic sealing)
- Compatibility with insulation and filtration systems
In practice, sealing materials are often selected as part of a broader system design. Coordinating sealing with insulation and filtration components helps improve overall process efficiency and stability.
For applications requiring reliable performance in aluminum melt environments, it is useful to evaluate ceramic fiber rope solutions designed specifically for high-temperature industrial use.
How Does Sealing Affect Aluminum Casting Quality?
Sealing performance has a direct impact on both process efficiency and final product quality in aluminum casting.
Effective sealing contributes to:
- Stable molten aluminum temperature
- Reduced oxidation and contamination
- Improved filtration consistency
- Lower energy consumption
Even minor improvements in sealing can lead to better control of molten metal flow and fewer casting defects.
What Should Be Considered for Long-Term Performance?
For long-term use in aluminum casting environments, durability and stability are critical.
Key considerations include:
- Resistance to repeated thermal cycles
- Dimensional stability at high temperatures
- Mechanical wear over time
- Ease of replacement and maintenance
Working with experienced suppliers can help ensure that the selected materials are suitable for specific process conditions and operational requirements.
You can also learn more about our overall solutions and expertise on our homepage.
Conclusion
Ceramic fiber rope is an essential material in aluminum casting processes, particularly in sealing applications where maintaining thermal stability is critical. Its high-temperature resistance, flexibility, and durability make it well-suited for demanding industrial environments.
1. What is ceramic fiber rope used for in aluminum casting?
Ceramic fiber rope is mainly used for high-temperature sealing in aluminum casting systems, including furnace doors, launder joints, and filter boxes. It helps maintain temperature stability and reduce heat loss.
2. Can ceramic fiber rope withstand molten aluminum temperatures?
Yes, ceramic fiber rope can typically withstand temperatures between 1000°C and 1260°C, which is suitable for most aluminum melting and casting environments.
3. Why is sealing important in aluminum melt systems?
Proper sealing prevents heat loss, reduces oxidation, and ensures stable molten metal flow, all of which are critical for maintaining casting quality and process efficiency.
4. What are the advantages of ceramic fiber rope compared to other sealing materials?
Ceramic fiber rope offers higher temperature resistance, better flexibility, and improved sealing performance compared to materials like glass fiber rope or graphite packing.
5. Is ceramic fiber rope flexible enough for irregular surfaces?
Yes, its rope structure allows it to compress and adapt to uneven surfaces, making it ideal for sealing gaps in industrial equipment.
6. Where is ceramic fiber rope commonly installed in aluminum plants?
It is commonly used in furnace doors, launder systems, filter box sealing areas, and expansion joints in high-temperature equipment.
7. How long does ceramic fiber rope last in high-temperature environments?
Its lifespan depends on operating conditions, but it generally offers good durability under repeated thermal cycles and high-temperature exposure.
8. What types of reinforcement are used in ceramic fiber rope?
Ceramic fiber rope can be reinforced with glass fiber for general use or stainless steel wire for higher strength and temperature resistance.
9. Does ceramic fiber rope improve energy efficiency?
Yes, by reducing heat loss and maintaining stable temperatures, it helps lower overall energy consumption in aluminum casting processes.
10. How do you choose the right ceramic fiber rope for industrial use?
Key factors include temperature rating, density, diameter, reinforcement type, and compatibility with the specific application environment.
