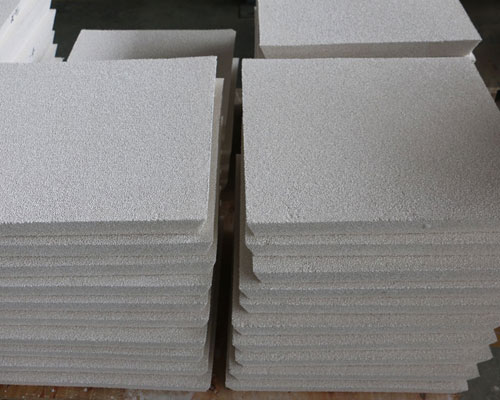

Aluminium Foundry Ceramic Foam Filters

Aluminium Foundry Ceramic Foam Filters

Carried out an extensive programme on Aluminium Foundry Ceramic Foam Filters performance.

In one section of this work, the impact of adding a grain refiner based on the Al-Ti-B system was assessed.

They concluded that in case the incoming metal cleanliness was good then there was a minimal impact of the grain refiner on the performance of the filter.

However, if there is an artificially high inclusion loading from the metal (achieved by deliberately vigorously stirring the metal in the furnace), then the introduction of the grain refiner leads to a reduction in aluminium foundry ceramic foam filters filtration efficiency.

Using Alumina Ceramic Foam Filter

In such a case there was a disproportionate release of inclusions from the filter compared to the incoming inclusion levels.

They assumed that the particles exiting the filter are agglomerates of inclusion species arising from the furnace metal interacting with particles from the grain refiner.

Metallographic evaluation of used aluminium foundry ceramic foam filters suggests that the bridges of inclusions across the filter cell junctions, as seen in the absence of a grain refiner and do not appear when grain refiner is used.

It has been suggested that the mechanism of filtration of a ceramic foam filter is altered in the presence of a grain refiner addition.

The presence of a grain refiner from the start of casting appears to prevent the formation of bridges within the filter structure.

The introduction of a grain refiner part way through the cast results in the destruction of any previously formed bridges.

It should be made clear that these effects were observed for conditions where the metal inclusion level was artificially high. Under normal conditions, the work concluded that the grain refiners have minimal impact on the filter performance.

So the ceramic foam filter molten aluminum filtration is important for aluminum alloy casting.

Ceramic Foam Filter for Casting Industry is been made by specific procedures and have peculiar bone-frame holes just like the shape of foam (Called three-dimensional connected channel) and myriad eyelets which only been found in big times microscope. Compare to similar ones, our ceramic foam filter have many advantages as below:

–Stable chemical composition
–Excellent strength
–Resistant to high temperature
–Calm down of the turbulent flow of metal nicely
–Big surface area
–Superior dimensional tolerances
