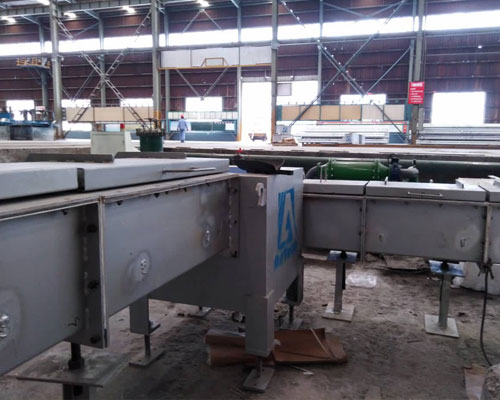

Aluminum Casting Launder

Aluminum Casting Launder

The aluminum casting launder is composed of a solid low-carbon steel shell, lined with refractory material. In addition to low thermal conductivity and high thermal fatigue strength, it also has the greatest non-wetting properties.

Before and after firing, we manually inspect all prefabricated refractory launders to ensure the highest quality. We provide a complete in-house casting product line through the casting product line. We also have extensive experience in handling materials from most other major manufacturers. Each of our casting launders is tested in our internal quality control laboratory.

Boron nitride coatings can also be used on all our preforms to promote metal release. Contact us now to understand your needs for prefabricated refractory launders!

The interface flanges at both ends of the runner components of the molten aluminum casting can realize the simple and leak-free bolt connection of the interconnecting components.

The launder system adopts modular design, straight type, left type 90º, right type 90º and 45º combination can meet specific runner layout according to casting production line configuration and factory layout.

The launder system is equipped with an adjustable floor mounting frame for easy installation and adjustment to compensate for height changes and metal levels.

Molten Aluminium Trough

The heated lid can preheat the refractory material in the molten aluminum launder system before casting. This preheating reduces metal temperature loss, shortens the time to reach steady-state conditions at the beginning of casting, and eliminates the potential risk of water retention in the launder.

The cover is composed of a rigid steel shell with a pivot hinge along one face for connection to the upper surface of the transfer launder. The handle on the opposite side allows the lid to be lifted from the metal stream and stays on the stopper beyond the vertical position for stable placement in the open position.

The lid is equipped with a coil-type heating element embedded in a refractory lining, provide the best heat dissipation into the metal and maintain a safe external temperature for contact with gloves. The raised junction box simplifies the replacement of parts, where the parts are connected to the field wiring on the wiring board.

Advantages of Aluminum Casting Insulation Launder System

1. Excellent insulation properties
2. High compressive strength
3. Excellent thermal shock resistance
4. The surface is smooth and non-stick aluminum
5. Good insulation properties
