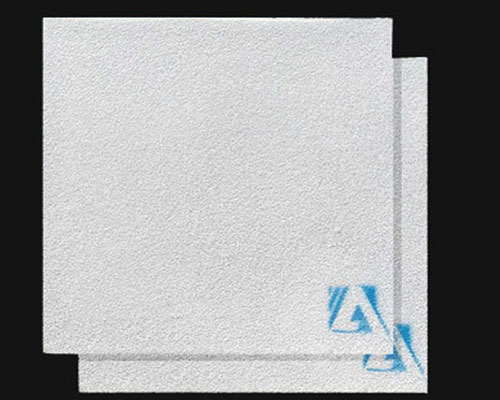

Ceramic Foam Filter from AdTech Metallurgical Materials Co., Ltd has been focusing on research, development, production and marketing of the adhesive ceramic foam filter(CFF) for aluminum alloy casting Since 2012.
Ceramic Foam Filters from AdTech are mainly applied for filtration of aluminum and aluminum alloys in foundries and cast houses.
The filters have their excellent resistance to attack and corrosion from molten aluminum, they can effectively remove inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.
Advantages for Ceramic Foam Filter
- Adopt adsorption principle for filter, can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
- No broken bits drop out, effectively reduce the pollution of molten aluminum.
- Superior thermal shock resistance, improve erosion resistance ability of molten metal.
- Automatic flow production, 3 calibration procedures, precision size, fit the CFF filter box tightly.
- Improve the surface appearance and performance, purify molten aluminum.

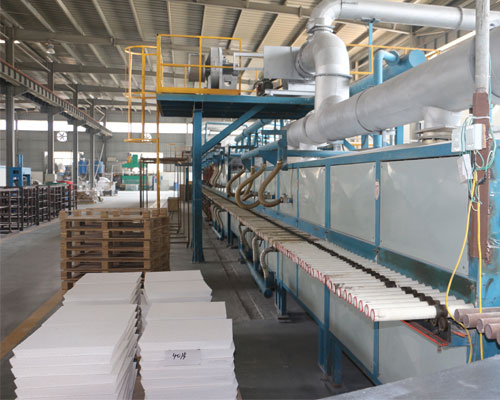

Ceramic foam filter from AdTech is produced basing on the carrier with solid reticular structure and combined organic foam pores. The producing procedure is as below, put carrier into the thixotropic alumina slurry, adopt square to center correcting automatic extrusion process, so that slurry evenly deposits in foam skeleton of carrier, after drying solidification, then carrier will turn into final product by roasting formed under 1180 ℃ high temperature. Filter is installed in the filter bowl for filtrating impurity in molten aluminum alloy, which helps to meet the requirement of production in high value-added, high-tech performance aluminum alloy precision casting, such as computer hard drive, PS baseboard for printing, canning materials, fan blades for turbojet engine, etc.
Sealing Gasket for Ceramic Foam Filter
The ceramic foam filter is surrounded by sealing gasket, laying between filter and filter bowl, to prevent molten aluminum from leaking through the interface. AdTech’s ceramic foam filter adopts sealing gasket in 3 different types, fiber paper material, fiber cotton material, expanding cotton material.
Standard sizes for Ceramic Foam Filter
Dimension (± 3 mm
): 7x7in 9x9in 12x12in 15x15in 17x17in 20x20in 23x23in 26x26in
Thickness: 50 ± 2 mm
Bevel Angle: 17.5± 1.5°
Special Dimension: square, rectangular, round, trapezoidal, abnormal, or customized as per the requirement.
